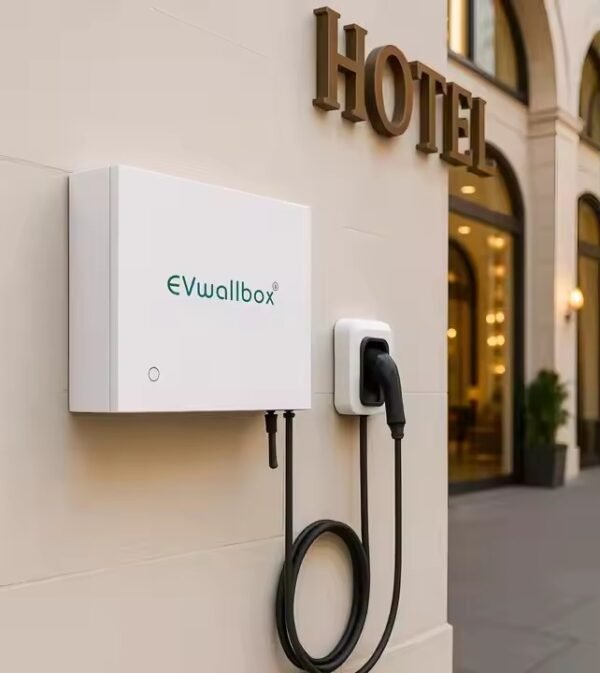

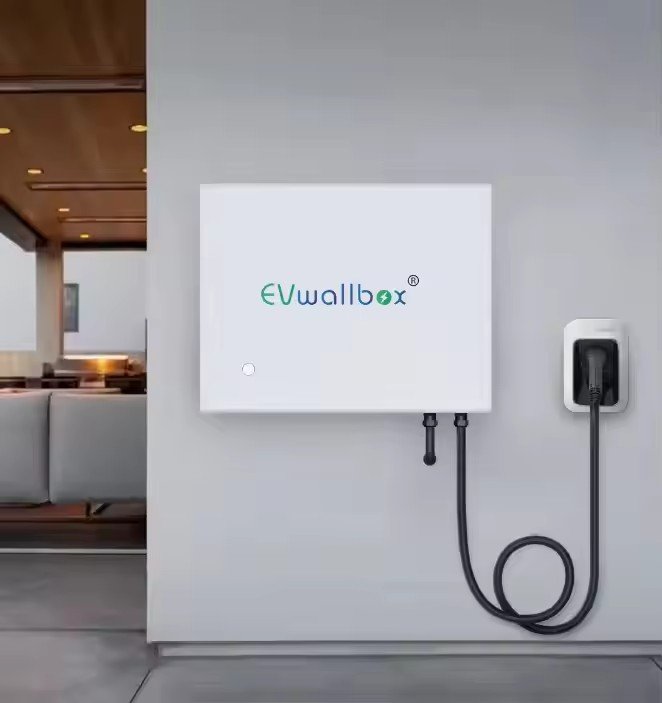

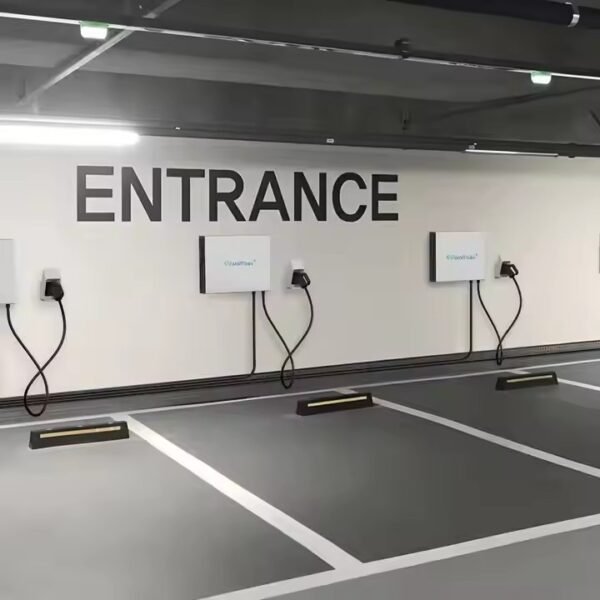

GB/T Ev Charger Portable Dc Electric Vehicle 20kw Dc Portable Ev Charger Charge Dc Ev Charger 30kw
GB/T Ev Charger Portable Dc Electric Vehicle 20kw Dc Portable Ev Charger Charge Dc Ev Charger 30kw
Additional information
| Output Power | 22kW – 43kW |
|---|---|
| Input Voltage | 380V |
| RFID system | ISO/IEC 14443A/B |
|
Product Number
|
WY01-20kW
WY01-30kW
|
|||
|
Input
|
400VAC (3P+N+PE) || 50/60Hz
|
|||
|
Output Voltage
|
200 – 750VDC
200 – 1000VDC
|
|||
|
Output current
|
CCS1 – 67A || CCS2 – 67A || CHAdeMO – 67A || GBT- 67A
CCS1 – 100A || CCS2 – 100A || CHAdeMO – 100A || GBT- 100A
|
|||
|
Connectors
|
CCS1 || CCS2 || CHAdeMO || GBT
|
|||
|
Efficiency
|
≥94% at nominal output power
|
|||
|
Power factor
|
＞0.98
|
|||
|
Operating temperature
|
-30°C to 55°C
|
|||
|
Altitude
|
< 2000m
|
|||
|
Working || Storage Humidity
|
≤ 95% RH || ≤ 99% RH (Non-condensing)
|
|||
|
Display
|
One-click start
|
|||
|
RFID system
|
ISO/IEC 14443A/B
|
|||
|
Dimensions (L x D x H)
|
600mm* 100mm*500mm
|
|||
|
Ingress Protection
|
IP54 || IK10
|
|||
|
Power Electronics Cooling
|
Air Cooled
|
|||
|
Weight
|
25kg
|
|||
|
Insulation (input – output)
|
＞2.5kV
|
|||
|
Regulatory Compliance
|
CE || EMC: EN 61000-6-1:2007, EN 61000-6- 3:2007/A1:2011/AC:2012
|
|||
|
Charging Protocol Standards
|
Mode 4 – IEC-61851, ISO-15118, DIN 70121Mode 4 – CHAdeMO 2.0 Mode 4 – GB/T 18487 2023, GB/T 20234 2023, GB/T 27930 2023
|
|||
|
Length of charging cable
|
3m
|
|||
|
Electrical Safety: GFCI
|
RCD 30 mA Type A
|
|||
|
Electrical Safety: Surge Protection
|
20 kA
|
|||
|
Electrical Safety General
|
Over Voltage, Under Voltage, Over Current, Missing Ground
|
|||
|
Electrical Safety: Output Short
|
Output power disabled when output is short circuited
|
|||
|
Electrical Safety Temperature
|
Temperature Sensors @ Charge Coupler and Power Electronics
|
|||
|
Emergency Stop
|
Emergency Stop Button Disables Output Power
|
|||
